Ventilate, heat, cool, save!
The Smart H is an AHU (Air Handling Unit) with thermodynamic recovery adapted to your project .
Benefits
- Air handling unit Double flow thermodynamic
- Free cooling or active cooling
- Dehumidification
- Tertiary modulated ventilation with VOC and hygrometry sensor
- Automatic changeover between heating and cooling (change over)
- Flat design (false ceiling mounting possible)
Understand the overall heating solution of a MyDatec CMV
Field of application
- Decentralized air handling unit for tertiary premises, up to 30 persons
- Housing (new or renovation)
Implementation of the Smart H
- In an isolated technical room
- Condensate to be provided
- Insulated blower pipes (min. 25mm)
- Insulated exhaust ducts (min. 25mm)
- Reject / fresh air 25mm or 50mm insulated ducts
- Electrical: 230V – 50Hz power supply (2.5mm²)
- Communication: 4 wires 0.5mm² max.
Possible airflow configurations
Description
- Automatic start-up
- Compact monobloc, without outdoor unit
- 20/10 white pre-painted aluminum finish
- Thermoacoustic insulation
- Integrated extract air heat pump
- Rotary compressor, French
- Low energy fans (EC ERF 2015)
- Adjustable ventilation rate
- Unit precharged with R407C gas
- Maintenance through the front panel
- Wall bracket, with mounting diagram

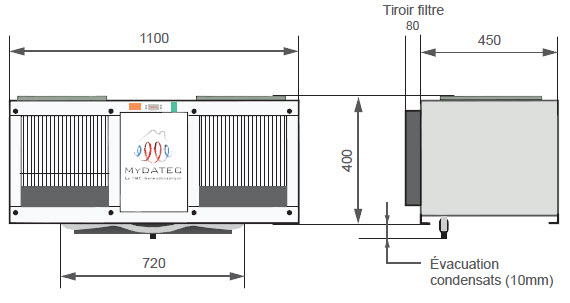

Dimensions
Air handling unit range with thermodynamic recovery
| DESIGNATION | DESCRIPTION |
| KIT MyDATEC Smart 200H control unit | Thermodynamic double flow CMV Heater 3.9kW (including 2kW extra heaters) Cooling 1.78kW (free cooling or active) Wall bracket Touch control |
| KIT MyDATEC Smart 300H control unit | Thermodynamic double flow CMV Heater 5.1kW (including 2kW extra heaters) Cooling 2.67kW (free cooling or active) Wall bracket Touch control |
Technical specifications
| Smart 200H | Smart 300H | |
| COP (+7°C ext. / -7°C ext.) with 20°C int. |
3,67 / 4,79 |
3.67 / 4.79 |
| Hot power supplied at -7°C ext. / 20°C int. |
1,9kW |
3.1 kW |
| Absorbed CAP power normative at +7°C ext. / 20°C int. |
0.52 kW |
0.87 kW |
| EER at 35° C ext. /27°C int. |
2,41 |
2.39 |
| Cooling capacity supplied to 35° C ext /+27°C int. |
1.78 kW |
2.67 kW |
| Nominal air flow rate to be considered account for the thermal calculation |
200 m3/h |
300 m3/h |
| Max. air flow rate configurable (200 Pa) |
600 m3/h |
600 m3/h |
| Average absorbed current |
2,3A |
3,8A |
| Heater power additional max. |
2 kW |
|
| Power supply |
230 V – 50 Hz |
|
| Recommended protection |
10 A curve D |
|
| Filtration |
G4 |
|
| Refrigerant |
R 407 C |
|
| Refrigerant mass |
900 g |
|
| Weight of the plant |
60 Kg |
|
